Himalaya Public School – Ground Floor Project
🏫 About the Project
The Himalaya Public School is a flagship development by the Khidmat Welfare and Educational Trust, dedicated to offering affordable, value-based education in the rural region of Pratapnagar (Khizrabad), Yamunanagar, Haryana.
This project reflects our commitment to empowering underprivileged children through quality learning spaces built with dignity, discipline, and development in mind. With modern infrastructure and an inclusive, accessible layout, this school will serve as a vital foundation for future generations.
📍 Location
Herbal Park Road, Near Masjid Kishanpura
Pratapnagar (Khizrabad), District Yamunanagar, Haryana – 135021
🏗️ Project Overview
Detail | Description |
Project Name | Himalaya Public School – Ground Floor |
Total Covered Area | 5,751 sq.ft |
Architect | Ar. Mohd. Azmat (Design Solution Point) |
Start Date | 04 June 2025 |
Estimated Cost | ₹68,73,750 |
🧱 Infrastructure Details
Classrooms & Learning Areas
Facility | Size (in ft) | Quantity |
Classrooms | 24’ x 18’, 18’ x 24’ | 6 |
Computer Lab | 18’ x 24’ | 1 |
Principal’s Office | 18’ x 12’ | 1 |
Staff Room | 18’ x 12’ | 1 |
Support Areas
- Toilet Block with separate Wazu Area
- Cut-Out for Ventilation: 2’6″ x 8’3″
- Front Verandah: 8’ wide
- Rear Verandah: 5’ wide
Accessibility Ramp for specially-abled students
💸 Budget Breakdown
Item | Estimated Cost (₹) |
Bricks (1.6 lakh pcs) | ₹10,40,000 |
Cement (1,600 bags) | ₹6,88,000 |
Steel (3,000 qtl) | ₹10,80,000 |
Flooring & Tiling | ₹7,34,000 |
Electrical & Sanitary Fittings | ₹6,78,000 |
Doors & Windows | ₹4,83,000 |
Painting & Finishing | ₹2,40,000 |
Misc. Construction Items | ₹10,000 |
Total Estimate | ₹68,73,750 |
🧱 Structural Strength – Columns
Type | Size | Footing | Reinforcement |
C1 | 12” x 15” | 5’ x 5’ | 10 x 16mm + 4 x 20mm bars |
C3 | 9” x 9” | 4’ x 4’ | 4 x 16mm bars |
Rings | — | — | 8mm dia @ 150mm spacing |
🪟 Doors & Windows
Type | Size | Quantity |
Doors (D1) | 4’ x 8’ | 13 |
Doors (D2) | 2’6” x 8’ | 6 |
Windows (W1) | 5’ x 4’ | 24 |
Windows (W2) | 3’ x 6’ | 1 |
Ventilators | 1’6” x 3’ | 15 |

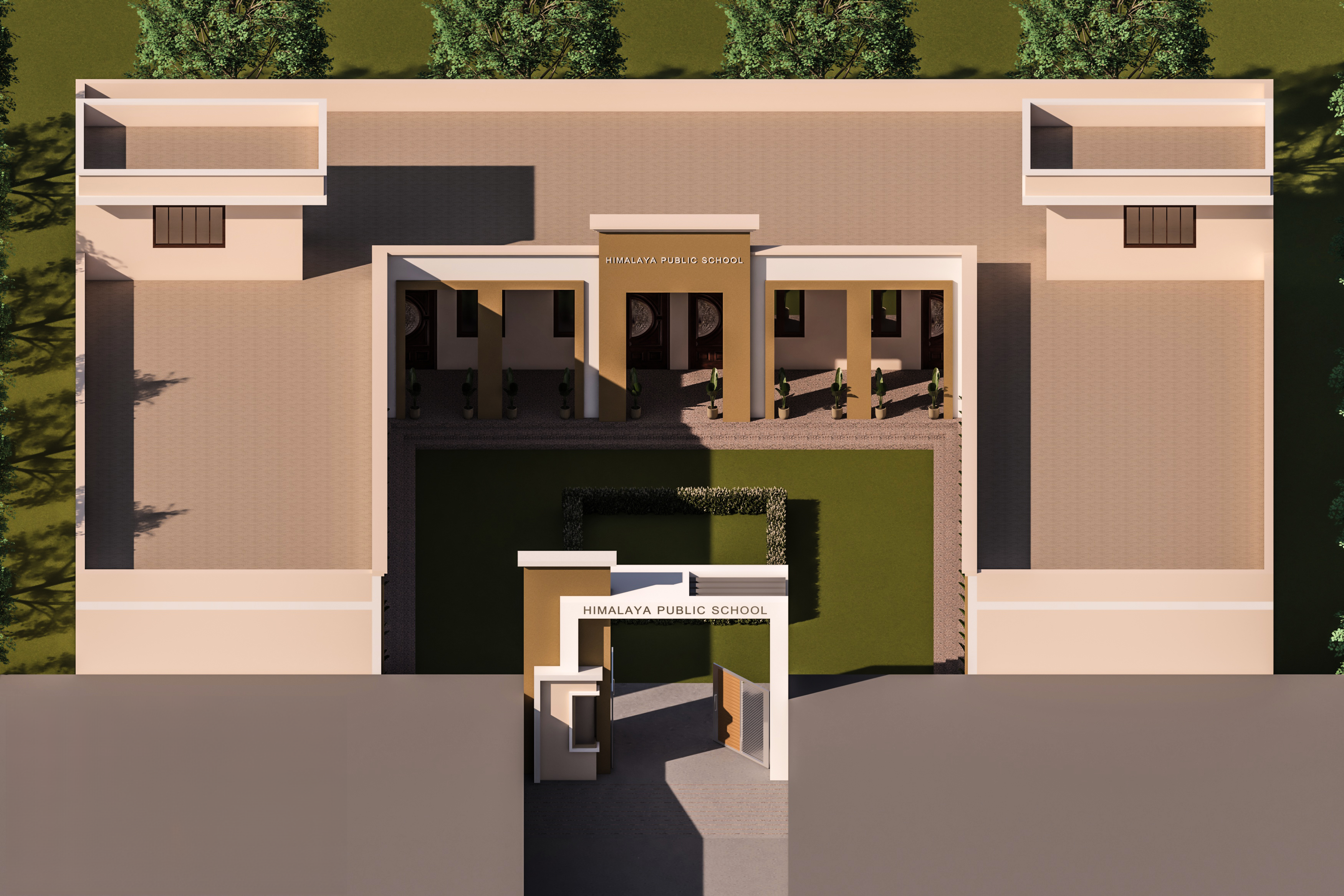

🗺️ Site Plan Overview
- Plot Size: 99 ft x 90 ft
- Frontage Road Width: 20 ft
- Main Gate Width: 12 ft
- Playground: Rear side open area allocated
Rear Setback: 2’6” wide for ventilation & fire safety
